Main Specifications:

Model: DZ1100-540

Oversea size: 1930*1650*1450mm

Chamber size: 1220*540*110mm

Sealing size: 1100mm

Bag length:420mm Max

Capacity: 2-10 times/minute

Power: 7.5kw

PLC system:With

Vacuum pump:200m3/hr

Other models:

DZ1100-610

DZ1100-680

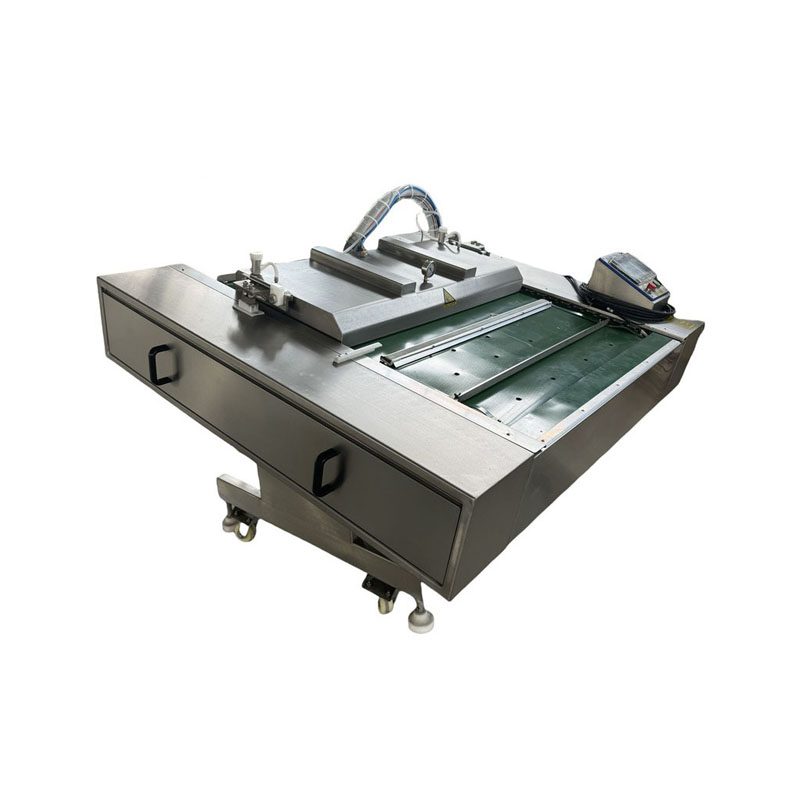

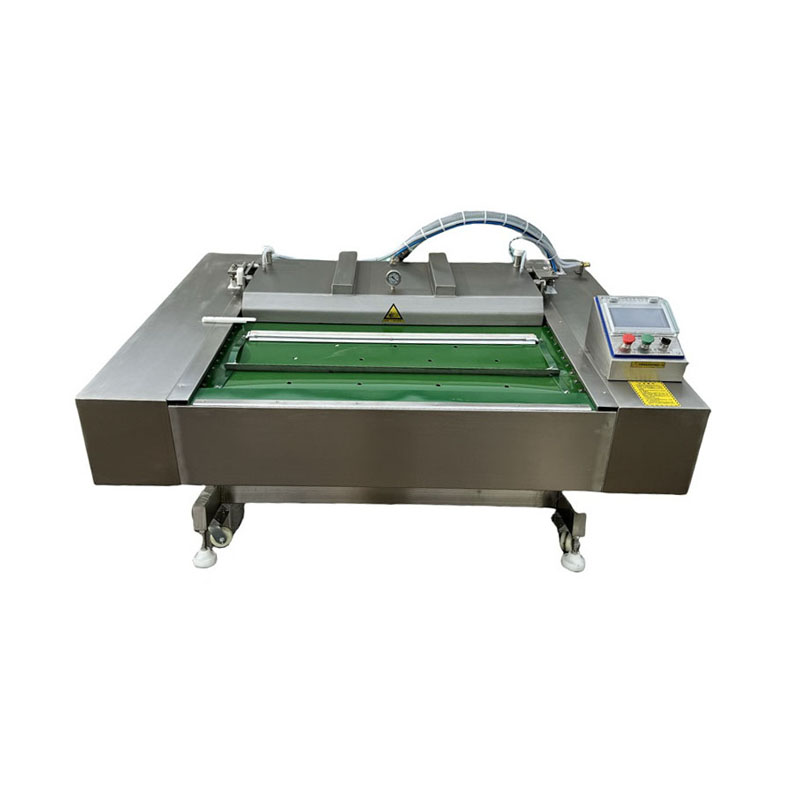

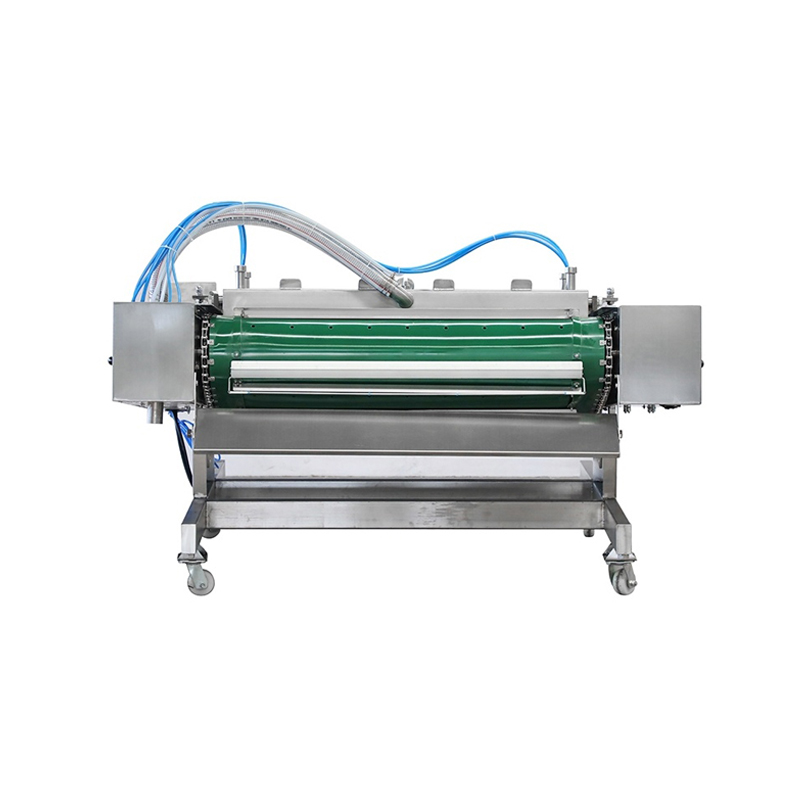

Introduction:

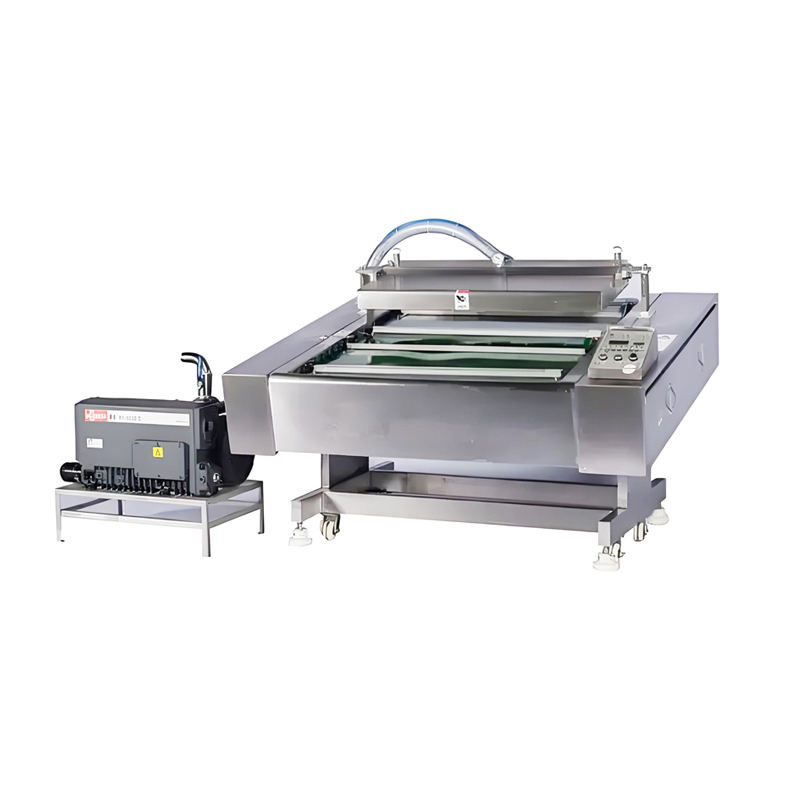

Continuous vacuum packaging machine also know as rolling type vacuum packaging machine, is a fully automatic type with high productivity. It consists of an upper cover (vacuum chamber), working platform (conveyor belt), frame and transmission system, PLC control system and vacuum system. Its vacuum pump is external.

Features and advantages:

The sealing line of this machine is 1000mm or above, and it can process multiple food bags at the same time.

This machine has features such as high precision and accurate positioning of the rolling belt. The operators do not need to adjust the position of the conveyor belt manually.

Continuous packaging type makes the packaging speed more high, saves labor and suitable for large-scale production.

The structure is 304 stainless steel so it is sturdy and durable, and can prevent corrosion and rust caused by packaging acid, alkali, salt and other items.

 The water cooling protection system enhances the service life of the heating strip.

The whole machine is controlled by PLC system so it has functions of counting and operation memory.

Applications:

It is suitable for vacuum packaging of food with soup,and widely available for various plastic packing bags, and used for various solid and powder materials such as raw and cooked foods, fruits, native products, medicinal materials, chemicals, instruments, clothing, hardware products, electronic components, etc.
