Main Specifications:

Overall size:Length is from 3m to 12m, customized

Voltage:220V/380V,50HZ/60HZ,(or others)

Water pump:1, 2 or 3 units

Heating type:Electricity or steam

Water tank:1, 2 or 3

Drying system:With fans(Cold or hot air),quantity customized

Capacity:150-500 pieces/hr

Introduction:

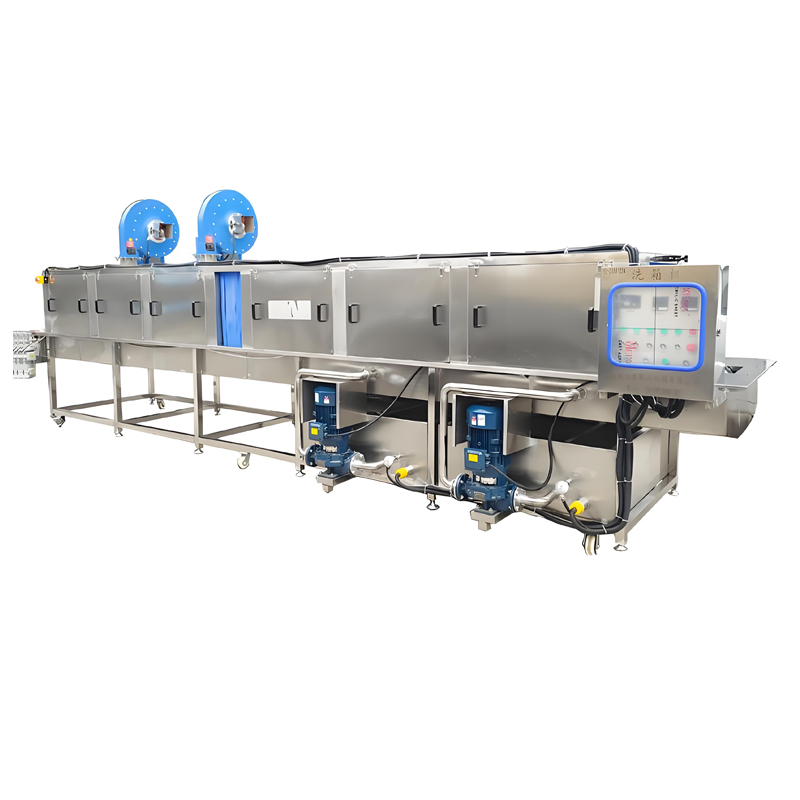

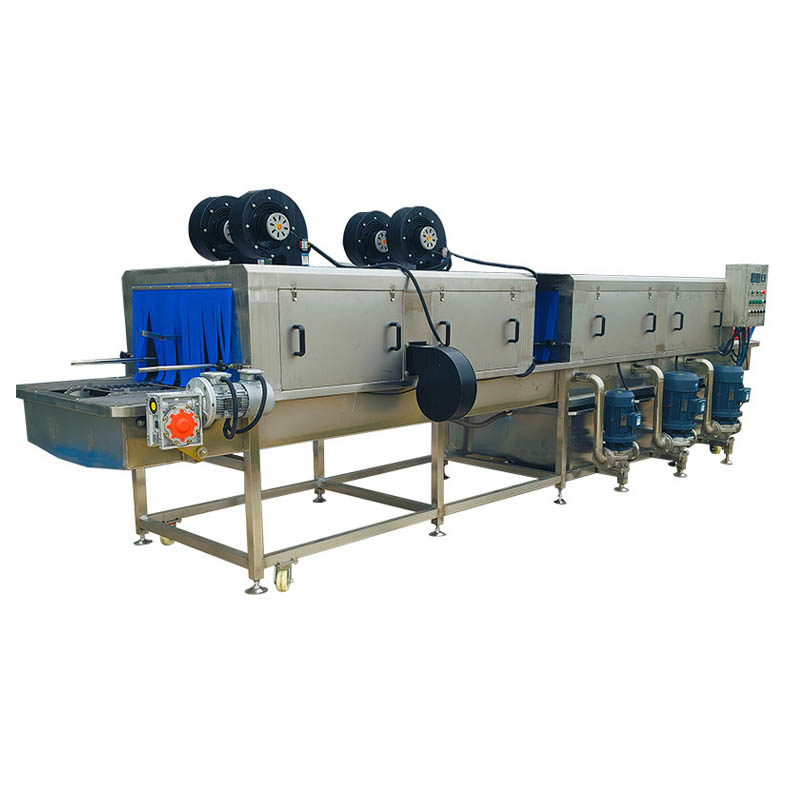

Industrial crates washer and drying machine, also known as turnover tray/basket washer dryer, is an automatic container washing equipment for replacing the manual work.

◆ The main material is 304 stainless steel;

◆ The nozzles are made of food grade high temperature resistant plastic or stainless steel, their angles are adjustable;

◆ The motor speed is stepless adjustable or variable-frequency adjustable, suitable for adusting different washing time;

◆ Steam heating or electric heating.

A large amount of moisture adheres to the surface of the cleaned basket, the air drying section solves this problem through the following methods:

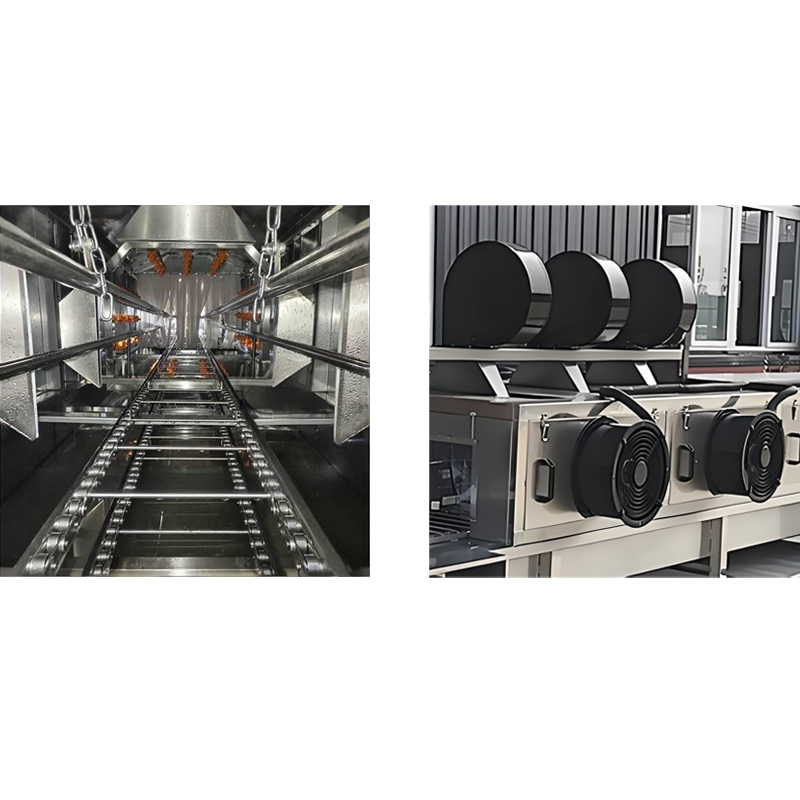

Water removal section:High-pressure air knife (generated by a high-power fans) to form a flat high-speed airflow in the four directions of the basket, like a scraper, "cutting off" and blowing away surface water droplets.

Drying section (optional): The crates are finally dried by circulating hot air (usually set at 60-100 ℃) to ensure that they are completely dry.

Applications:

This machine is widely used in industries that have strict requirements for container cleanliness and hygiene:

Food processing industry: Pastry, meat, seafood, fruit and vegetable processing plants.

Central kitchens.
